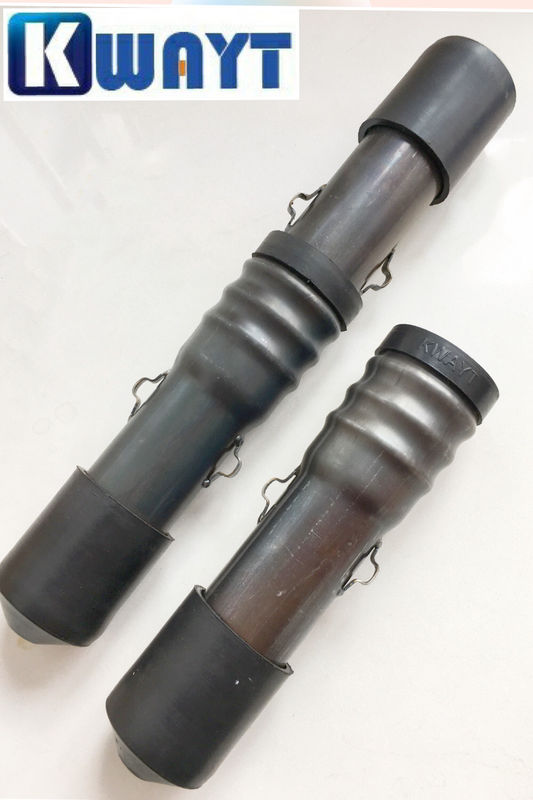

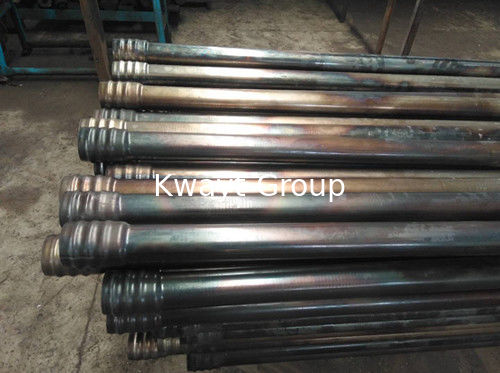

sonic pipe with grooved

sonic pipe with grooved

    • sonic pipe with grooved
    • sonic pipe with grooved
    • sonic pipe with grooved
  • sonic pipe with grooved

    Product Details:

    Place of Origin: Shandong
    Brand Name: KWAYT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: 0.2-1.5USD FOB Price
    Packaging Details: Bundles
    Delivery Time: 15-20 days
    Payment Terms: T/T,L/C
    Contact Now
    Detailed Product Description


    sonic pipe
    OD 50mm,53mm,57mm,60mm
    Thickness 1-2mm
    Material Q195 etc.
    Length 5.8m
    Certification TUV,ISO
    type press-clamp type, push-fit type,threaded type,flanged type
    standard ASTM/BS/GB etc
    Material Q195 etc
    Color black
    End finish plain
    Surface treatment PE or oiled or mill varnish

     Position splice

    • No wastage – standard lengths

    • No Electricity/Welding/Threading

    • Push-fit assembly

    • Fast & Light handling by workers

    • Easy fixing to rebar cage

    • No weather limitations

    • Patented & designed for sonic testing

    • 100% tested in factory

    • Easy visual inspection on site

    • Optional mechanical crimping


    Size/OD(mm WT(mm) Tensile strength(Mpa) Elongation Internal pressure(Mpa) External ressure(Mpa)
    50 1--3.5 ≥315Mpa ≥14% ≥1Mpa ≥4Mpa
    54 1--3.5 ≥315Mpa ≥14% ≥1Mpa ≥4Mpa
    57 1--3.5 ≥315Mpa ≥14% ≥1Mpa ≥4Mpa


    sonic pipe , is dedicated for sonic test applications. They are specially designed to be encased in foundations such as bored piles, diaphragm walls and barrettes to allow for future testing of the concrete integrity by ultrasonic waves.


    sonic tube  is the Push-Fit SYSTEM available on the market dedicated for sonic test applications. The concept is to form a bell mouth by enlarging the end of the tube to allow a CONCRETE PROOF JOINT.


     sonic pipe with grooved

    sonic pipe with grooved



    sonic pipe with groovedsonic pipe with grooved


     sonic pipe with grooved

    Application of sonic tube:

     sonic pipe with grooved

    Company Information

    sonic pipe with grooved

    sonic pipe with grooved

    Qingdao Kwayt Co.,Ltd is the subsidiary company of Shandong Hongsheng Steel Pipe Co., Ltd.which is engaged in exportation of steel pipes and fittings. Shandong Hongsheng Steel Pipe Co., Ltd.  is the largest manufacturing and sales enterprise for galvanized steel pipe ,seamless steel pipe and fittings in the north of Shandong Province.Our factory supply galvanized steel pipe,stainless steel pipe,carbon steel pipe, alloy steel pipe, ERW

    /SSAW/ LSAW PIPE, API pipe,pipe fitting.



      Our products are widely used in petroleum, chemical, power and gas, oil and gas well field casing and tubing, high pressure boiler tube, drinking water, fire, high-speed fence construction, steel tube, etc.
