Home ProductsSonic Pipe/ Sonic Logging Tube

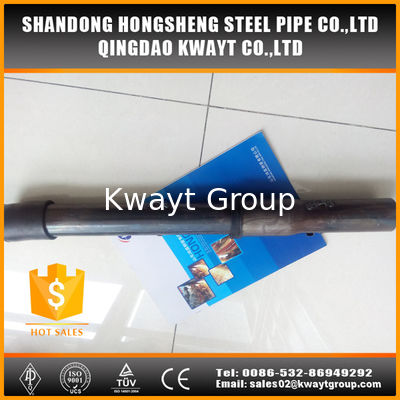

Crosshole sonic logging pipe

Crosshole sonic logging pipe

    • Crosshole sonic logging pipe
    • Crosshole sonic logging pipe
  • Crosshole sonic logging pipe

    Product Details:

    Place of Origin: SHANDONG
    Brand Name: KWAYT-SONIC
    Certification: SGS
    Model Number: 50

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: USD1.3-2.0 PER METER
    Packaging Details: in bundles
    Delivery Time: 7-15 days
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Material: Steel Q195 Length: 5.8 Or 6m

    Commodity sonic pipe
    OD 50mm,53mm,57mm,112mm,163mm
    Thickness 1-2mm
    Material Q195 etc.
    Length 5.8m
    Certification ISO.Testing report.
    type push-fit type
    standard ASTM/BS/GB etc
    Material Q195 etc
    Color black
    End finish plain
    Surface treatment black annealed

    Advantage

    1.Fast and easy installation by worker.

    2.Push-fit assembly.

    3.No welding required at jobsite.

    4.No equipment required.

    5.Easy fixing to rebar cage.

    6.Push-fit mark to ensure full engagement.



    Size/OD(mm WT(mm) Tensile strength(Mpa) Elongation Internal pressure(Mpa) External ressure(Mpa)
    50 1--3.5 ≥315Mpa ≥14% ≥1Mpa ≥4Mpa
    54 1--3.5 ≥315Mpa ≥14% ≥1Mpa ≥4Mpa
    57 1--3.5 ≥315Mpa ≥14% ≥1Mpa ≥4Mpa



    KWAYT Sonic tubes are Push-fit type CSL tubes are made by thin black annealed steel tube, with an enlarge end in a bell mouth shape .Specially designed rubber gasket for the bell mouth ensure quick installation and perfect sealing to keep the tube integrity and avoid the entry of other material.







    Popular push fit type sonic pipe

    Popular push fit type sonic pipe

    Popular push fit type sonic pipe





    Application of sonic tube:

    Popular push fit type sonic pipe



    KWAYT-SONIC tubes installation:



    1.Install a bottom cap onto the first sonic tube.



    2.Fix the sonic tube to the rebar cage by tying the steel wire around the fixing ears and tube.



    3.Fix the next tube to the rebar cage as the step 2.



    4.Push the two tubes together.(Push-fit mark to ensure full engagement).



    5.Ensure that both ears are aligned.Then connect tightly the ears of both tubes with a steel wire.



    6.Repeat the process above till all tubes are installed.

    Popular push fit type sonic pipe







    Company Information





    Qingdao Kwayt Co.,Ltd is the subsidiary company of Shandong Hongsheng Steel Pipe Co., Ltd. which is engaged in exportation of steel pipes and fittings. Shandong Hongsheng Steel Pipe Co., Ltd. is the largest manufacturing and sales enterprise for galvanized steel pipe ,seamless steel pipe and fittings in the north of Shandong Province.Our factory supply Sonic pipes,galvanized steel pipe,stainless steel pipe,carbon steel pipe, alloy steel pipe,ERW/SSAW/ LSAW PIPE, API pipe,pipe fitting.



    Our products are widely used in petroleum, chemical, power and gas, oil and gas well field casing and tubing, high pressure boiler tube, drinking water, fire, high-speed fence construction, steel tube, etc.



    Welcome to visit our factory !

    We supply sonic pipe test report

    Popular push fit type sonic pipe



    Packaging & Shipping

    Popular push fit type sonic pipe



    Popular push fit type sonic pipe



    My Contact

    Any question or you are interested in sonic pipe ,pls feel free to contact me !!!
